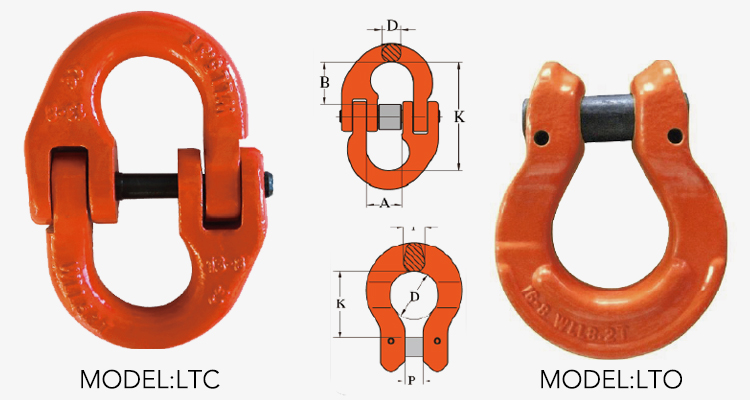

TOYO-INTL ALLOY STEEL CONNECTING LINK LTC AND LTO MODEL

ALLOY STEEL CONNECTING LINK LTC

AND LTO MODEL

The TOYO-INTL C Links simple design allows instant assembly, dismantling and reassembly

of dependably safe slings.

Assembly only one chain or fitting to each C link body half. When reassembly a C link,

we recommend you use a new pin and stud assembly. These are inexpensive

and readily available.

Technical Specialities

1.Material is high grade alloy steel (quenched and tempered).

2.Rated for alloy chain grade 80 and grade 100 for lifting application.

3.Locking system that provides for simple assembly and

disassembly – no special tools needed.

4.Marked with ABLE, traceablity,,WLL,Batch No.and Size.

5.Individually proof load tested at 2.5 times of WLL with Certification.

6.Ultimate load is 4 times of capacity.

7.Fatigue rated is 1.5 times the WLL at 20,000 cycles.

8.Forged Alloy Steel-Quenched and Tempered.
